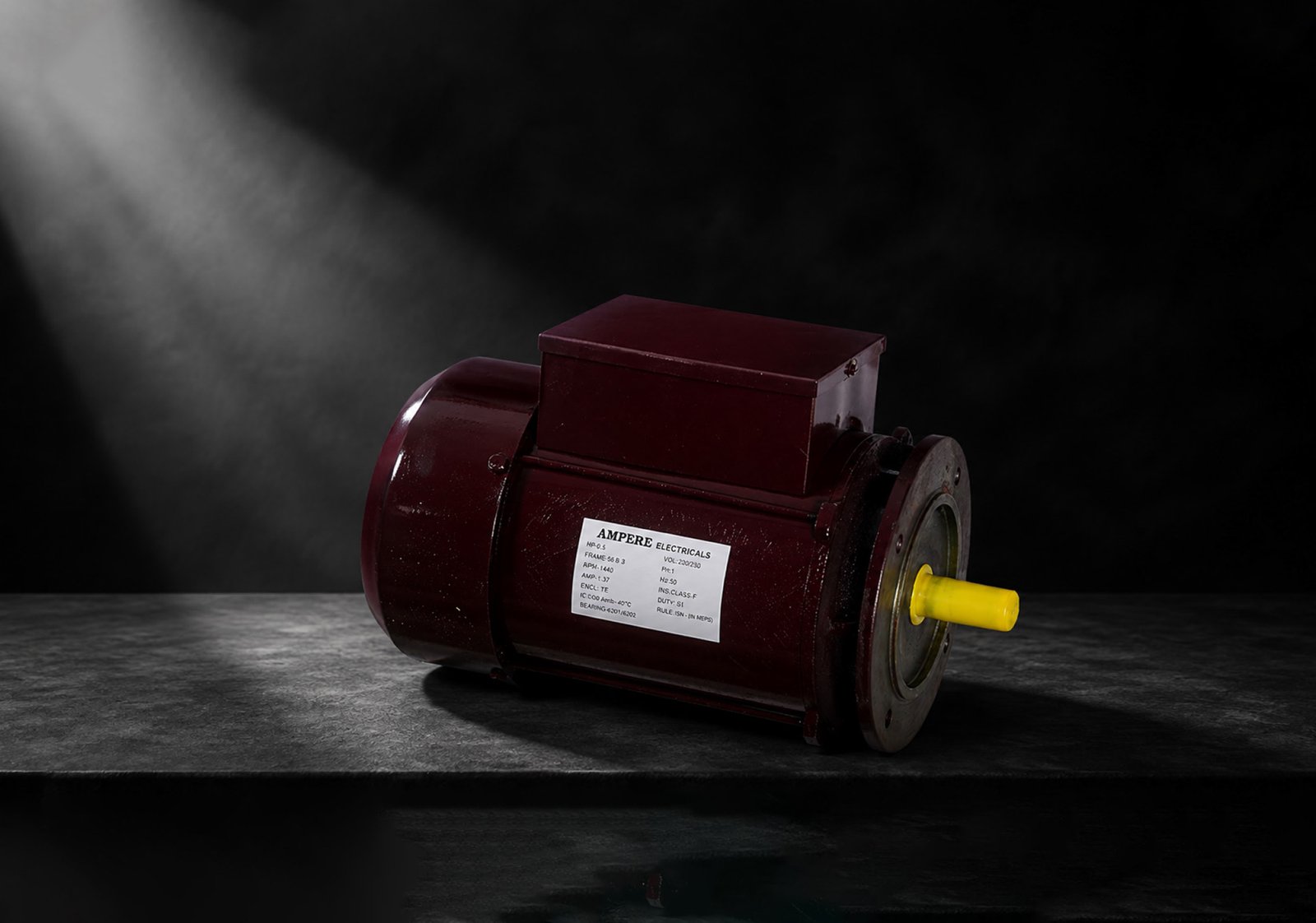

Flange Mounted Single Phase Motor
When a customer needs a motor that couples directly to a gearbox or a pump housing without a mounting base, we point them to our flange mounted single phase motor. It's built the same way as our foot mounted range internally, but the B5/B14 flange face makes it a direct fit for equipment where floor space or alignment is tight.
We machine the flange face to close tolerance ourselves, which matters more than people expect — a flange that's even slightly off centre puts uneven load on the bearing over time. That attention to fit is part of why we've built a name as a single phase motor manufacturer in gujarat that OEMs and panel builders keep coming back to.
Product Details
| Power | < 10 KW |
| Brand | INDOTECH |
| Phase | 1 |
| Speed | 1440 RPM / 2880 RPM |
| Voltage | 220 V |
| Mounting Type | Flange |
| Ambient Temperature | 60 |
| No. of Poles | 4 |
Specifications
| Model | Power (KW) | Power (HP) | Voltage (V) | Current (A) | Speed (RPM) | Eff (%) | Power Factor | Locked Rotor Torque / Rated Torque | Locked Rotor Current / Rated Current | Start Current (A) |
|---|---|---|---|---|---|---|---|---|---|---|
| AE631-2 | 0.18 | 1/4 | 220 | 1.48 | 1400 | 60 | 0.92 | 0.4 | 1.7 | 5 |
| AE632-2 | 0.25 | 1/3 | 220 | 1.96 | 1400 | 63 | 0.92 | 0.4 | 1.7 | 7 |
| AE711-2 | 0.37 | 1/2 | 220 | 2.73 | 1400 | 67 | 0.92 | 0.35 | 1.7 | 10 |
| AE712-2 | 0.55 | 3/4 | 220 | 3.88 | 1400 | 70 | 0.92 | 0.35 | 1.7 | 15 |
| AE801-2 | 0.75 | 1 | 220 | 5.15 | 1400 | 72 | 0.92 | 0.33 | 1.7 | 20 |
Kye features
Flange Mounting
Single Phase
Multiple Models
We get a lot of repeat orders on this one from panel builders who tried a cheaper flange mounted single phase motor elsewhere and had alignment trouble within a few months. If you're an single phase electric motor manufacturers in ahmedabad search away from placing your next order, send us your flange drawing and we'll confirm fitment before you commit to a quantity — that's a five-minute check that saves a much longer headache later.
The B5 and B14 face options on our flange mounted single phase motor cover most of the pump and gearbox couplings we see, and if your equipment uses a less common bolt pattern, we can usually work with your drawing rather than asking you to redesign around a standard flange.
Why Buy From Ampere Electricals
OEM buyers looking at single phase electric motor manufacturers in ahmedabad tend to care more about consistency across batches than about any single unit, since a flange that's slightly different from the last order means rework on the assembly line. As a single phase motor manufacturer in gujarat, we machine every flange to the same tolerance run after run, so your fifth order fits exactly like your first.
